Shenyang Kehua Fuwei Industrial Equipment Manufacturing Co., Ltd. is one of the leading manufacturers and suppliers of Smart Control Room Console in China, specialized in providing high quality customized service with low price. If you're going to buy durable Smart Control Room Console made in China, welcome to get quotation from our factory.
Structural Integrity & Precision Sheet Metal Fabrication
Equipment reliability in mission-critical environments depends directly on structural rigidity and dimensional accuracy. Our smart control room consoles are built entirely from industrial-grade metals using tight CNC machining tolerances.
Why We Avoid Generic "High Quality" Claims
Many suppliers promise "durable consoles" without technical parameters. In our manufacturing facility, durability is defined by measurable engineering data:
True 1.5mm Steel Thickness: Unlike decorative office desks made of 0.8mm–1.0mm painted sheet, our 1.5mm cold-rolled framework supports heavy desktop payloads without structural oscillation.
Precise Laser Cutting (±0.02mm): Eliminates on-site drilling, filing, or manual adjustments by your installation crew.
Flanged Pass-Through Protection: Sheet metal edges are not merely cut; cable cutouts feature continuous mechanical flanging. Even under building vibrations or frequent maintenance pulls, power and data cables remain protected against insulation stripping or short-circuit risks.
Ergonomics & Field of View: Optimized for Situational Awareness
In critical monitoring and emergency dispatch environments, seconds count. The console's spatial layout directly governs how fast an operator interprets critical alerts on their desktop displays and cross-references them with the central video wall.
Unobstructed Central Sightlines

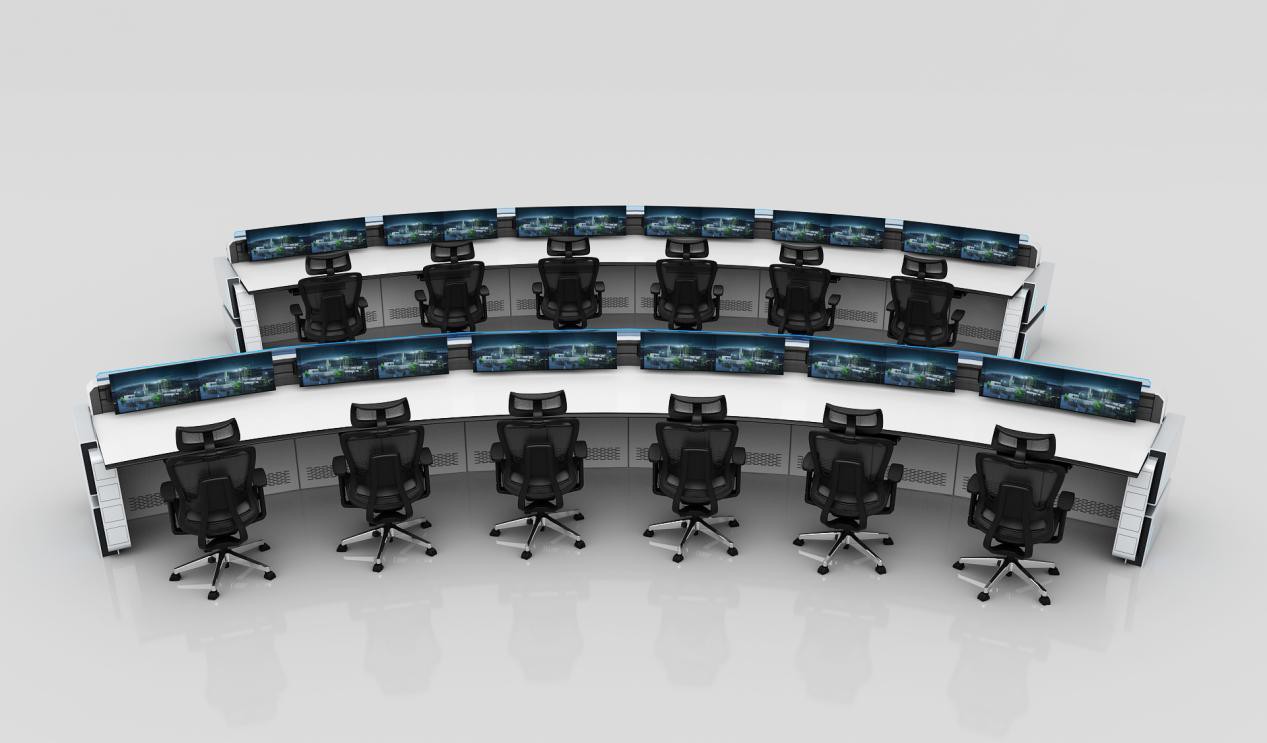

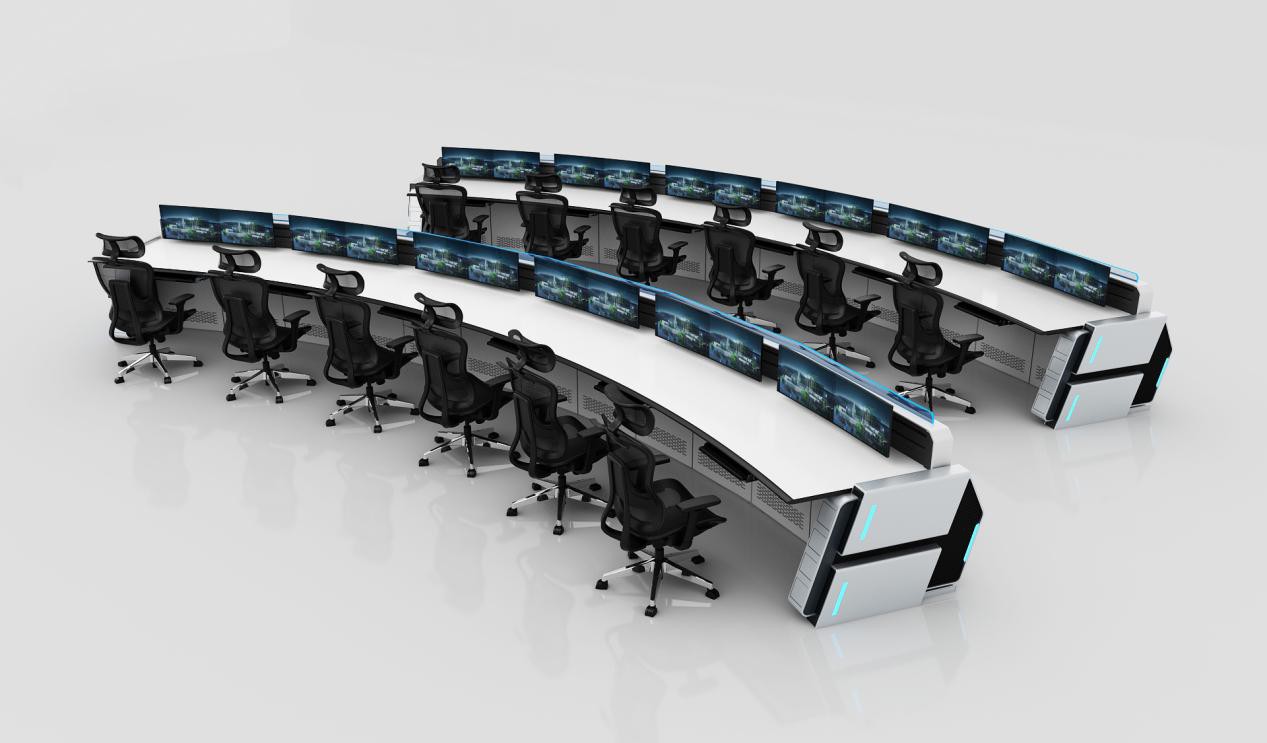

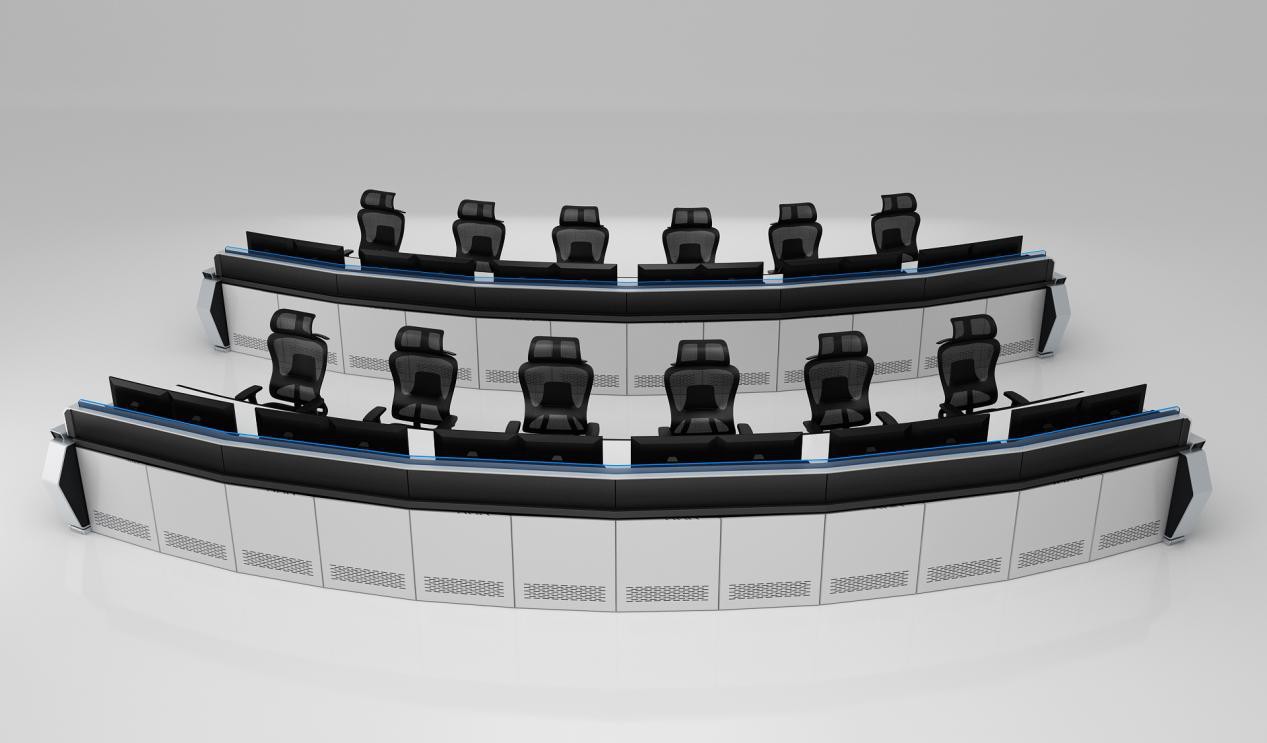

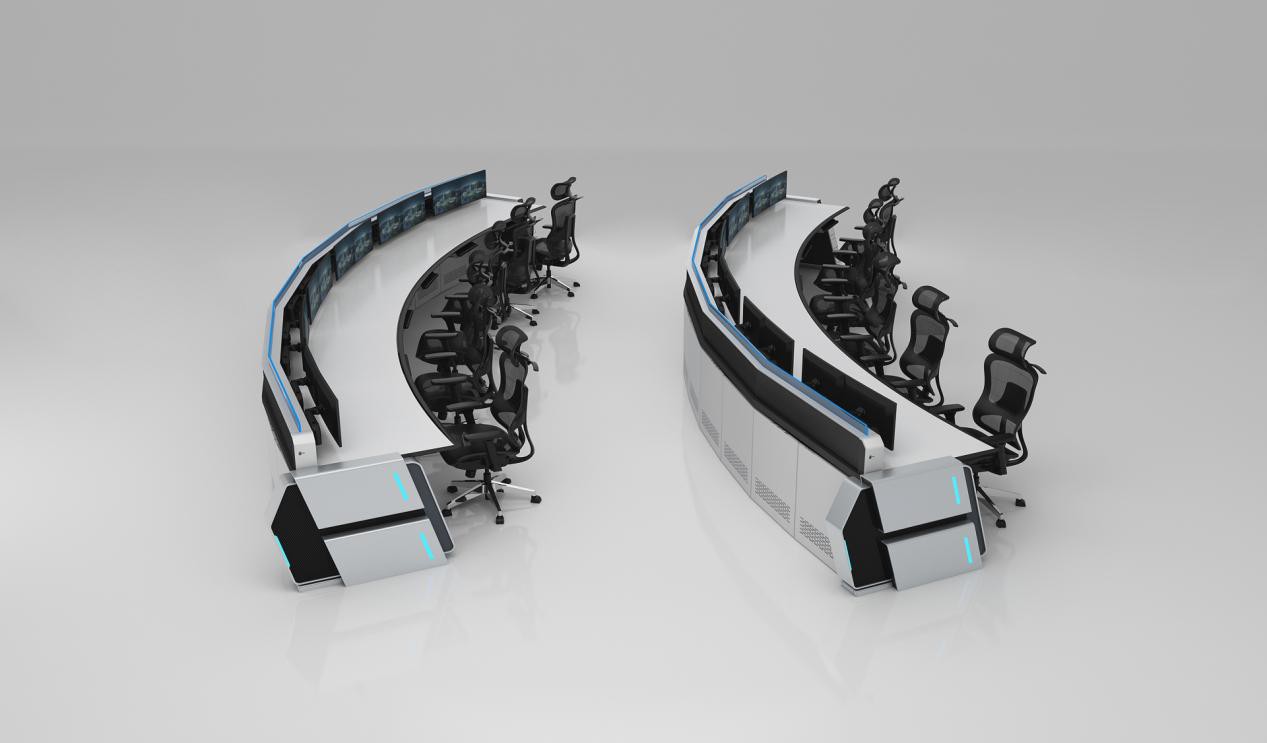

The smart control room console features an engineered large-curvature, multi-unit spliced layout. The desktop depth, monitor mount heights, and module angles are calculated to keep the lower boundary of the central large screen completely visible without requiring the operator to tilt their neck upward or lean forward.
Facilitated Team Cross-Interaction
Linear straight-line desks force operators to lean out of their seats to talk to adjacent team members. Our curved multi-seat geometry naturally angles operators toward one another. While each dispatcher maintains an immersive personal multi-screen workstation, they can exchange visual confirmations and verbal updates during rapid incident escalation.
Internal Architecture: Cable Management & Thermal Dissipation
The interior of each smart control room console bay acts as an organized technical enclosure rather than open, empty space.
- Separated Power & Signal Channels: Integrated dual-tier cable pathways physically isolate AC power cables from high-speed copper/fiber data feeds, preventing electromagnetic interference (EMI) and signal dropouts.
- Continuous Convection Cooling: Rear and underside access panels incorporate perforated ventilation arrays. Rising hot air from KVM extenders, mini PCs, and power supplies is directed out through rear convection channels, preventing heat buildup within the bay.
- Front and Rear Maintenance Access: Removable tool-less access covers allow technicians to swap out internal hardware or re-patch network cables without disrupting the operator on the main work surface.
Modular Scalability: From 10 to 50+ Operator Configurations
Control rooms expand as new operational systems and teams are introduced. Consoles must adapt to changing space constraints without requiring full replacements.
- Standardized Metal Interfaces: Each base module uses standardized structural connecting plates. Adding an operator position requires only bolting on a standard intermediate section.
- Adjustable Radius Curvature: By varying the angle of the modular wedge segments, the console's overall radius can be calibrated to fit small 10-person control suites or wide 50-person multi-row command auditoriums.
- Future Expansion Continuity: Because our structural parts are laser-cut from indexed CAD models, additional bays ordered months or years later match existing units in seam alignment, paint color, and joint tolerance.

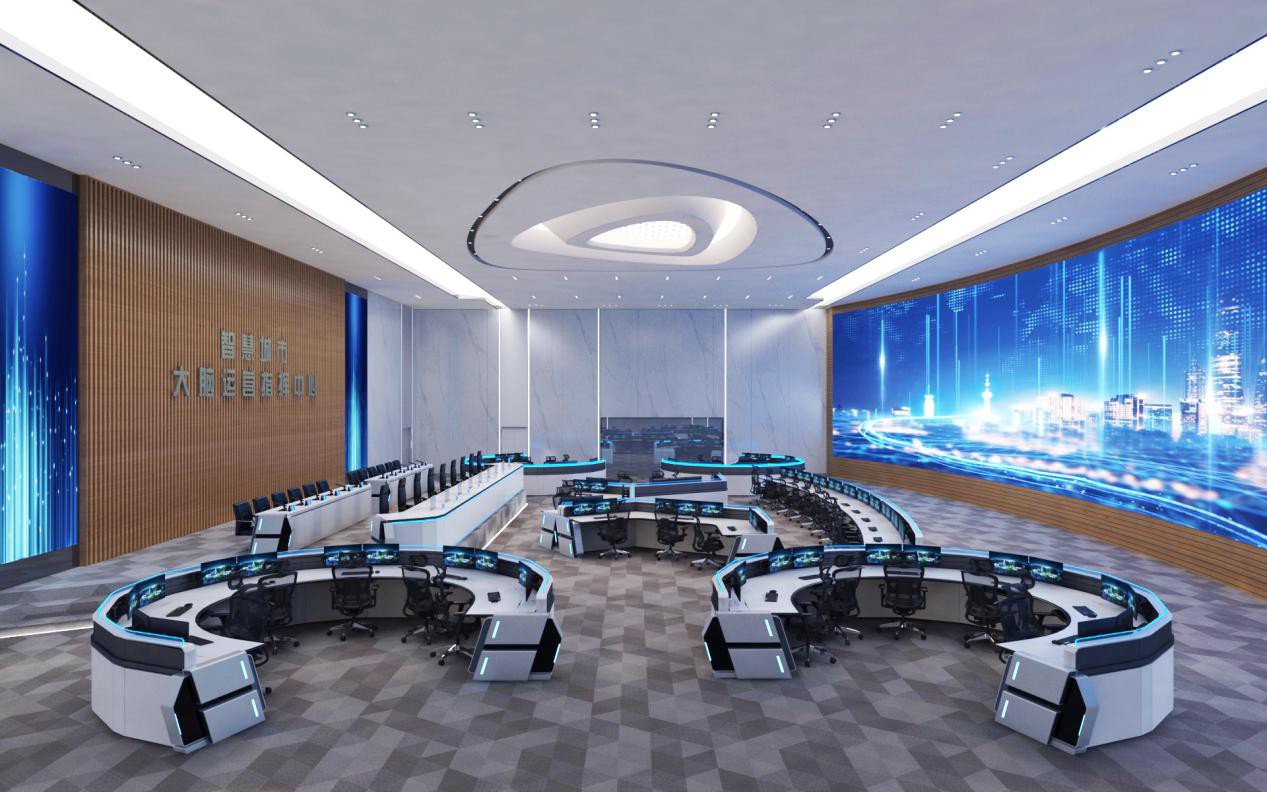

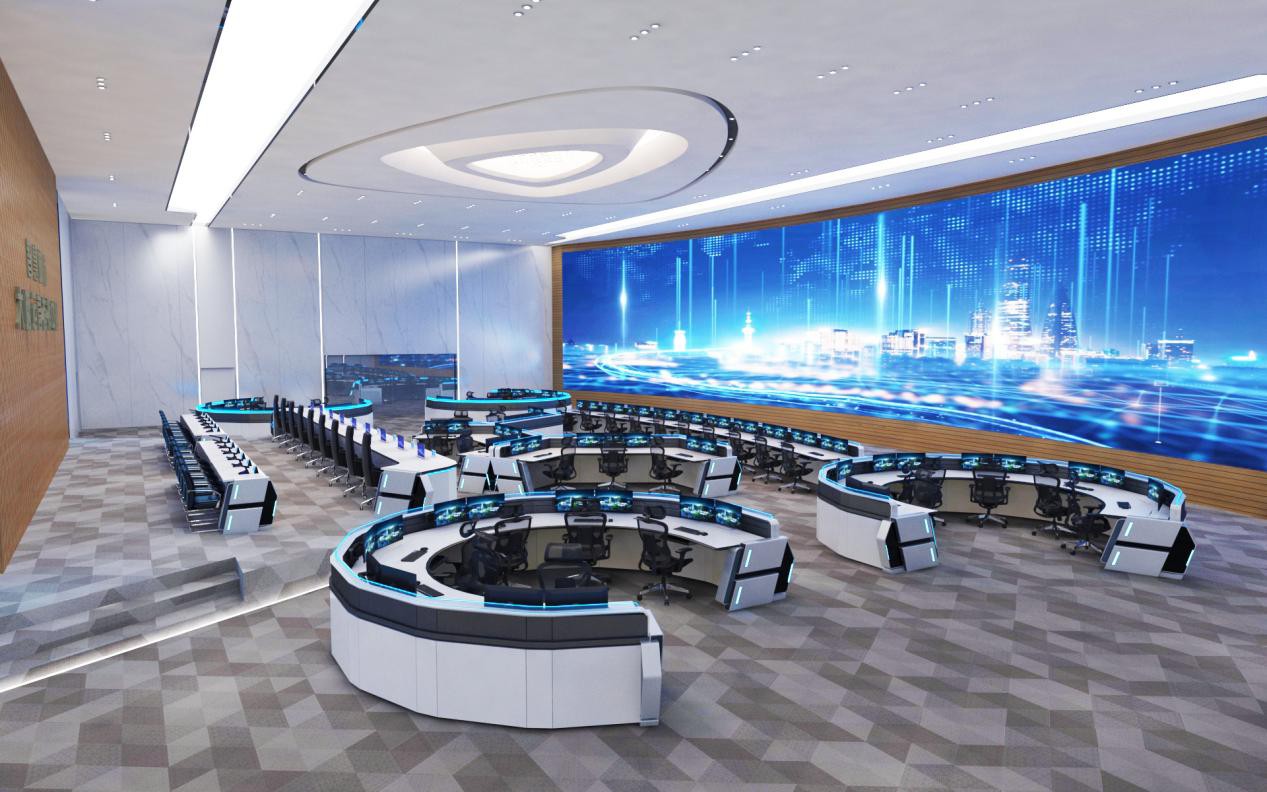

Field Application Scenarios
- Integrated Operation Centers (IOC): Managing city-wide IoT telemetry, cloud compute status, and multi-departmental resource dispatch.
- Municipal Emergency & Public Safety Dispatch: High-pressure, multi-operator environments requiring instant coordination between police, fire, medical, and municipal services.
- Intelligent Transportation & Traffic Hubs (ITS): Multi-screen CCTV monitoring, traffic light signal management, and rapid freeway incident intervention.
- Energy, Grid & Water SCADA Control Facilities: Housing rack-mounted industrial controllers, redundant KVM matrices, and multi-tier network switches.
Packaging, Overseas Logistics & Fast Site Assembly
For overseas procurement contractors, shipping volume and installation labor often determine project profitability.
- Knock-Down (KD) Flat-Packing: Each smart control room console is disassembled into modular frame elements, surface panels, and cable trays, then packed in high-density foam and reinforced seaworthy wooden crates. This reduces ocean freight volume by up to 55% compared to pre-assembled cabinets.
- Error-Free Hardware Matching: All structural connection points use pre-tapped industrial fastener locations. No field welding or hole-drilling is required on site.
- Factory Pre-Assembly Inspection: Before crating, every multi-seat console array undergoes full mock assembly in our factory. Technicians verify seam tolerance (≤0.02mm), fit cable trays, inspect edge chamfering, and label modules sequentially.
| Structural Feature | Specification / Engineering Standard | Operational Value to the Integrator |
|---|---|---|
| Main Load-Bearing Frame | 1.5mm high-grade cold-rolled steel (SPCC) | High load-bearing capacity; prevents frame sagging under high-density workstations and multiple monitor arms. |
| Hole Position Accuracy | ±0.02mm (Industrial Laser Cutting) | Guaranteed alignment for internal rack mounts, sub-panels, and cross-module connectors during site assembly. |
| Curved Splicing Tolerance | Arc seam gap ≤ 0.02mm (Precision CNC Bending) | Seamless multi-unit joining with zero visible gaps or uneven step transitions across 10-to-50-person arrays. |
| Corrosive/Outdoor Environment Option | 304 Stainless Steel Sheet with wire drawing and polishing treatment | Prevents oxidation and surface pitting in high-humidity coastal regions or industrial supervisory facilities. |
| Edge & Cable Contact Protection | Fully chamfered & deburred edges; flanged wire trough pass-throughs | Eliminates sharp burrs to protect technicians during installation and prevents cable jacket wear and tear. |
Technical FAQ for Procurement Officers & System Integrators
Q1: How do you prevent multi-unit curved smart control room consoles from shifting out of alignment during on-site installation?
A: We eliminate alignment drift at the manufacturing stage. Frame holes are cut by CNC lasers with a location tolerance of ±0.02mm, and each unit is connected using precision-machined positioning pins and high-tensile structural bolts rather than self-tapping screws. Furthermore, every multi-seat configuration is test-assembled on our factory precision floor before packaging to ensure that when assembled in sequence (Bay 1, Bay 2, etc.), total cumulative runout remains within project tolerances.
Q2: What prevents cable insulation damage inside the smart control room console's internal wire troughs?
A: In standard budget sheet metal enclosures, punched sheet metal edges can act like blades against cable insulation. Our wire troughs undergo a mechanical flanging process that creates a smooth, rounded lip along every pass-through cutout. All structural corners and cutouts are chamfered and deburred prior to electrostatic powder coating, providing a smooth contact surface for sensitive network cables and fiber cords.
Q3: When should a buyer specify 304 Stainless Steel over 1.5mm Cold-Rolled Steel?
A: Our standard 1.5mm cold-rolled steel with electrostatic thermoset powder coating provides reliable protection for climate-controlled indoor command centers. However, for coastal ports, water treatment facilities, semi-outdoor monitoring booths, or industrial environments with corrosive air quality, we supply frames and exterior skins made of grade 304 stainless steel with a wire drawing and polishing treatment to prevent long-term surface oxidation.
Q4: Can we integrate our proprietary KVM switches, mini PCs, and PDU power strips into the smart control room console?
A: Yes. The internal console compartments feature standardized mounting rails conforming to EIA-310 19-inch rack standards. We also offer custom-slotted mounting backplates to secure micro-form-factor PCs, KVM transmitters, and vertical zero-U PDU strips, keeping the desktop uncluttered while providing direct service access.
